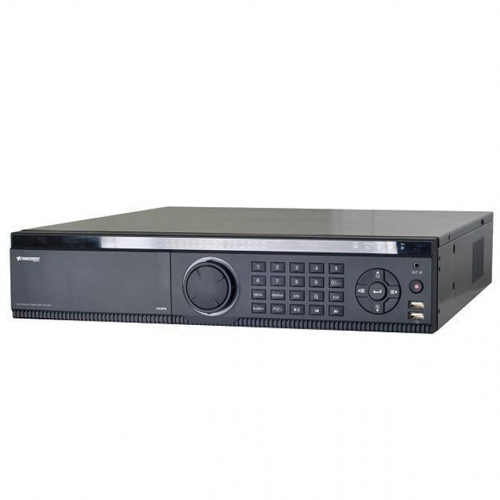

32 Port 960FPS Lite 5-IN-1 DVR 8xSATA

32 Port 960FPS Lite 5-IN-1 DVR 8xSATA

Item #
DVT32V
Brand
Vitek
Model
VT-TTAR3280

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
While Supplies Last
Add On Products
Product Description

Transcendent Tribrid 1080P TVI High Definition Video Surveillance Solutions offer unprecedented performance and value.
These user friendly, easy to install Tribrid analog HD DVRs are available in 4, 8, 16, and 32ch along with versatile HD-TVI/AHD/CVBS camera designs for every budget and application.
Transmit and record Real Time Images, up to 1080P, over existing Coaxial cable at distances of up to 1500 feet (Depending on cable characteristics and integrity).
Transcendent HDA Recorders accept TVI, AHD, CVI and analog (CVBS) inputs and also support additional IP cameras.
These Transcendent Tribrid recorders share the same client, CMS and mobile applications as the Transcendent NVRs.
Camera options include fixed, vari-focal Motorized Auto Focus with COC and vandal/weather resistant models.
Control Drivers are available for various Automation Systems

Specifications

• Video Inputs: 32 Channels HD-TVI/AHD/CVI/Analog BNC Inputs Supporting up to 1080P
• IP Camera Support: 4 IP Camera (3MP @ 30fps / 4MP @ 20fps / 5MP @15fps / 8MP @ 7fps Max per Camera)
• Compression: H.264 High profile
• Recording (720P)960fps: 30fps per channel (1280 x 720)
• Recording (1080P Lite)960fps: 30fps per channel (960 x 1080)
• Recording (1080P)480fps: 15fps per channel (1920 x 1080)
• Local Playback: 16 CH
• OS: Embedded Linux
• Video Output: 1 x HDMI (1080p) / 1 x VGA (1080p) / 1 x BNC Spot (Analog)
• Multi OperationPentaplex: Live Display / Record / Playback / Backup / Remote Access
• AudioInput: RCA x 16 / Output: RCA x 1
• Two-Way Audio: Yes
• Bit Rate768Kbps ~ 8Mbps
• EncodeVBR / CBR
• Quality Levels 6 level
• Recording Modes Manual / Timer / Motion / Sensor
• File ManagementLock, Unlock, Reserve time, Redundancy
• SearchTime, Motion, Sensor, Single, or Multi-channel
•  FunctionPlay, Pause, FF ,FB, Shutter Control, Jog, Digital zoom
• Alarm In/Out16 Alarm inputs / 4 Alarm Output
• Alarm ModesSensor, Motion, Video loss
• Alarm TriggeringRecord, PTZ move, Relay out, E-mail, etc
• Network Interface: RJ45 x 1
• Remote ViewingCMS / Web Browser / Mobile Platforms
• Remote Playback4CH
•  Dual-stream: Individual Network Video Stream and local recording stream, set separately
• Remote Users10 users online, dual stream
Control DriversAvailable for various automation control systems such as Control 4
• Remote ViewingCMS / Web Browser / Mobile (iOS/Android)
• RS485 x2 (for PTZ)
• Network ProtocolsTCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
• SATA HDDUp to 48TB (8 x 6TB)
• Network ProtocolsTCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
• Dimensions (WxHxD)16.93” x 3.54" x 17.72" (430 x 90 x 450mm)
