System Information
|

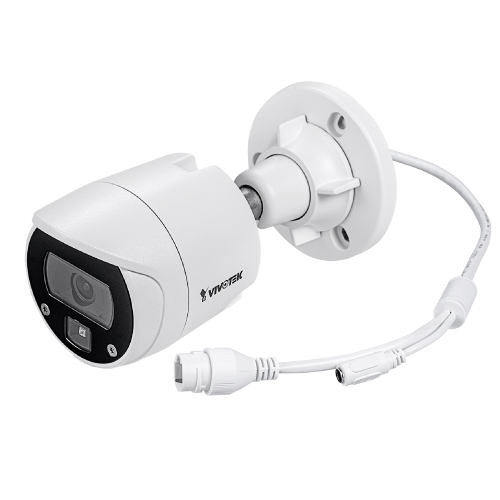

Model IB9369 (2.8mm)
IB9369 (3.6mm)
CPU Multimedia SoC (System-on-Chip)
Flash 256 MB
RAM 256 MB
|
|
| Camera Features |
Image Sensor 1/3.1" Progressive CMOS
Max. Resolution 1920x1080 (2MP)
Lens Type Fixed-focal
Focal Length IB9369(2.8mm): f = 2.8 mm
IB9369(3.6mm): f = 3.6 mm
Aperture IB9369(2.8mm): F2.0
IB9369(3.6mm): F2.2
Iris Type Fixed iris
Field of View
IB9369(2.8mm):
118° (Horizontal)
65° (Vertical)
140° (Diagonal)
IB9369(3.6mm):
90° (Horizontal)
49° (Vertical)
106° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Enhanced
Day /Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
Minimum Illumination
IB9369(2.8mm):
0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
IB9369(3.6mm):
0.1 lux @ F2.2 (Color)
<0.005 lux @ F2.2 (B/W)
0 lux with IR illumination on
Tilt Range 90°
Rotation Range 180°
Pan/Tilt/Zoom Functionalities ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
Storage Seamless Recording to MicroSD/ SDHC/SDXC card and recording to network-attached
storage (NAS)
|
|
Video
|
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate
24 f ps @ 1920x1920 (WDR on)
30 f ps @ 1920x1920 (WDR of f )
Maximum Streams 4 v ideo streams (Up to 9 conf igurable prof iles)
S/N Ratio 63 dB
Dy namic Range 120 dB
Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: v ideo title and time stamp ov erlay, v ideo orientation (f lip, mirror),
day /night settings; Illuminators: illuminators, anti-ov erexposure; Image settings: white
balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curv e),
def og, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control
(exposure lev el, iris adjustment, exposure time, gain control, iris mode), WDR; Priv acy
mask; Scheduled prof ile settings
Display Mode
Client dewarping
Ceiling mounted: 1O Fishey e, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four
Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One
Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fishey e Three
Regions
Local dewarping
Ceiling mounted: 1O Fishey e, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four
Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
|
|
Audio
|
N/A
|
|
| Network |
Users Live viewing for up to 10 clients
Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed
firmware, user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3,
IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP,
TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with
the 3P/ETL standard.
ONVIF Profile G, S, T supported, specification available at www.onvif.org
|
|
Solution Integration
|
Smart Motion Detection Five-window video motion detection, people detection, vehicle detection, time filter
VADP Package Smart Motion Detection
|
|
| Alarm and Event |
Event Trigger Camera tampering detection, Manual trigger,Motion detection, Periodical trigger, Recording
notification, SD card lif e expectancy, System boot
Event Action Event notification via email, HTTP, FTP, SFTP, NAS server, SD card, push notification File
upload via email, HTTP, FTP, SFTP, NAS server, SD card
|
|
| General |
Connectors RJ-45 cable connector f or 10/100Mbps Network/ PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af Class 0 PoE, DC 12V
(Simultaneous Power Redundancy Supported)
Power Consumption
PoE:
Max. 6.49W/4W (IR on/of f )
DC 12V:
Max. 5.1W/3.4W (IR on/of f )
Dimensions Ø 91.1 x 181.5 mm
Weight 671 g
Certifications
EMC: CE (EN55032 Class A, EN55035), FCC (FCC Part 15 Subpart B Class A), ICES-003
issue 7, RCM (AS/ NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety : UL (UL
62368-1), CB (IEC/EN 62368-1, IEC/EN 62471, IEC/EN 60950-22); IA: BIS (IS 13252): BSMI;
Environment: IK10 (IEC 62262), IP66 (IEC 60529)
Operating Temperature
Starting Temperature:
-30°C ~ 50°C (-22°F ~ 122°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F) (IR of f )
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity 95% RH (non-condensing)
Warranty 36 months
System Requirements
Operating System Microsof t Windows 10/8/7
Mac 10.12 (Chrome only )
Web Browser Chrome 58.0 or abov e
Internet Explorer 10/11
Other Players VLC: 1.1.11 or above
Included Accessories
Packing Contents Quick installation guide, alignment sticker, screw pack, cable gland
|
