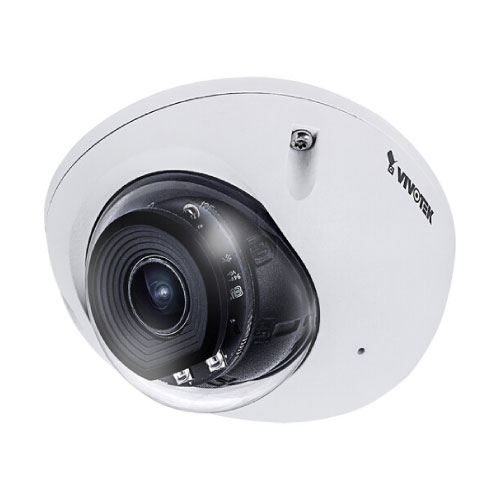

2MP 2.8MM WDR PRO Dome Vivotek

2MP 2.8MM WDR PRO Dome Vivotek

Item #

CID20V

Brand

Vivotek

Model

FD9366-HVF2

Color

WHITE

Warranty

2 Year /1Year OTC/1Year MFG

Condition

RETAIL BOX

If out of stock

3 to 5 Days

Product Description

Specifications

Camera
Sensor 2 MP 1/2.9" CMOS Focal Length 2.8mm Maximum Aperture f/1.8 Zoom Digital: 48x Lens Field of View Horizontal: 108° Vertical: 60° Diagonal: 124° IR Cut Filter Mechanical Day/Night Yes Minimum Illumination Color: 0.13 Lux B&W: 0 Lux Shutter Speed 1/32,000 to 1/5 Seconds Camera Angle Adjustment Horizontal: -30 to 30° Vertical: 0 to 90°
Video
Streaming Resolution 1920 x 1080 at 30 fps Supported Video Compression H.264, H.265, MJPEG Multi-View Streaming Yes, 3 Streams
Audio
Streaming Single Audio Formats G.711, G.726 Built-In Mic Yes
Networking
Security HTTPS, IEEE 802.1X Supported Protocols ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
System Integration
Application Programming Interface (API) ONVIF Profiles G, S & T Analytics Five-Window Video Motion Detection Event Trigger Yes Event Action Recording, Notification, Alarm Data Streaming Yes
System Requirements
Windows OS Support Windows 7, 8 Mac OS Support macOS 10.12 Environmental Operating Temperature -13 to 140°F / -25 to 60°C Startup Temperature -13 to 131°F / -25 to 55°C Operating Humidity 98% IP Rating IP67 IK Rating IK10
General
Memory 256 MB RAM / 128 MB Flash Recording Media microSD (up to 128 GB) Pan/Tilt None I/O Connections 1 x RJ45 IR Range 65.62' / 20 m Video Management Software VAST, Shepherd Supported Languages English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese Internal Storage None External Storage Options NAS Power Source PoE 802.3af (15 W) Power Consumption 5.5 W Dimensions H: 2.1 x W: 3.9 x L: 4.4" / H: 54.0 x W: 98.0 x L: 110.8 mm Weight 0.88 lb / 400 g
Packaging Info
Package Weight 1.265 lb Box Dimensions (LxWxH) 5.3 x 5.3 x 4.3"
