System Information
|

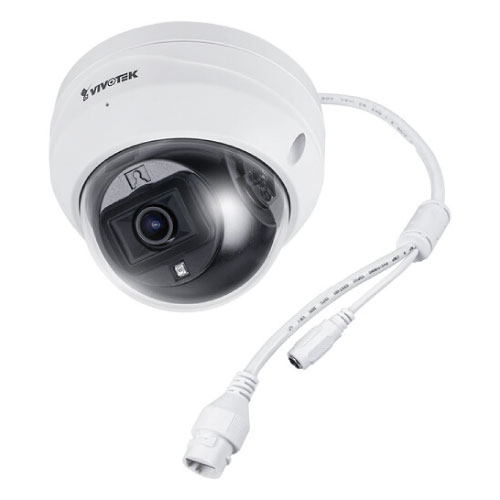

Model FD9369
CPU Multimedia SoC (System-on-Chip)
Flash 256 MB
RAM 256 MB
|
|
| Camera Features |
Image Sensor 1/3.1" Progressive CMOS
Max. Resolution 1920x1080 (2MP)
Lens Type Fixed-focal
Focal Length f = 2.8 mm
Aperture F2.0
Iris Type Fixed Iris
Field of View
116° (Horizontal)
65° (Vertical)
140° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Enhanced
Day /Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*1
Minimum Illumination
0.08 lux @ F2.0 (Color)
<0.005 lux @ F2.0 (B/W)
0 lux with IR illumination on
Pan Range 350°
Tilt Range -10° ~ 75°
Rotation Range No rotation, 2-axis design
Pan/Tilt/Zoom Functionalities ePTZ: 18x digital zoom (4x on IE plug-in, 4.5x built-in)
Storage Seamless Recording to MicroSD/ SDHC/SDXC card and recording to network-attached
storage (NAS)
|
|
Video
|
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 30 fps @ 1920x1080
Maximum Streams 2 video streams (Up to 7 configurable profiles)
S/N Ratio 59 dB
Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings
General settings: video title and time stamp overlay, video orientation (f lip, mirror, rotation),
day /night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance,
image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR;
Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed
adjustment, WDR; Privacy mask; Scheduled prof ile settings; Pixel calculator
|
|
Audio
|
Audio Capability One-way audio
Audio Compression G.711, G.726
Audio Interf ace Built-in microphone
Effective Range 5 meters
|
|
| Network |
Users Live viewing for up to 10 clients
Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed
firmware, user access log, user account management
Protocols
802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv 3,
IPv 4, IPv 6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP,
TLS 1.2, UDP, UPnP
Interface
10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with
the 3P/ETL standard.
ONVIF Profile G, S, T supported, specification available at www.onvif.org
|
|
Solution Integration
|
Smart Motion Detection Five-window video motion detection, people detection, vehicle detection, time filter
VADP Package Smart Motion Detection
|
|
| Alarm and Event |
Event Trigger Audio detection, camera tampering detection, manual trigger, motion detection, periodical
trigger, recording notification, SD card life expectancy, system boot
Event Action Event notification via email, HTTP, FTP, NAS server, SD card, push notification File
upload via email, HTTP, FTP, NAS server, SD card
|
|
| General |
Connectors RJ-45 cable connector f or 10/100Mbps Network/PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af Class 0 PoE, DC 12V
(Simultaneous Power Redundancy Supported)
Power Consumption
PoE:
Max. 6.49W/4W (IR on/of f )
DC 12V:
Max. 5.1W/3.4W (IR on/of f )
Dimensions Ø 110 x 85 mm
Weight 465 g
Certifications
EMC: CE (EN55032 Class B,EN55035), FCC (FCC Part 15 Subpart B Class B), ICES-003
issue 7, RCM (AS/ NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety : UL
(UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 62471,IEC/EN 60950-22); IA: BIS (IS
13252):BSMI;Environment: IK10 (IEC 62262), IP66 (IEC 60529)
Operating Temperature
Starting Temperature:
-30°C ~ 50°C (-22°F ~ 122°F)
Working Temperature:
-30°C ~ 55°C (-22°F ~ 131°F) (IR of f )
-30°C ~ 50°C (-22°F ~ 122°F) (IR on)
Humidity 95% RH (non-condensing)
Warranty 36 months
System Requirements
Operating System Microsoft Windows 10/8/7
Mac 10.12 (Chrome only )
Web Browser Chrome 58.0 or abov e
Internet Explorer 10/11
Other Players VLC: 1.1.11 or above
Included Accessories
Packing Contents Quick installation guide, alignment sticker, screw pack, cable gland, desiccant bag
|
