18MP 180* Multi-Sensor IR IP66 VIVOTEK

18MP 180* Multi-Sensor IR IP66 VIVOTEK

Item #
CIF09V
Brand
Vivotek
Model
MS9321-EHV-V2

Color
White
Warranty
2 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

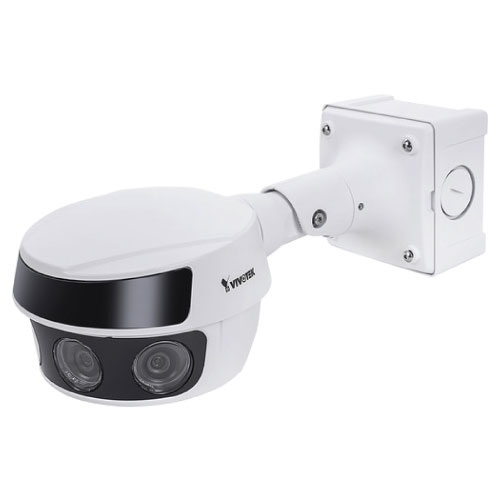

Watch your property with the S Series MS9321-EHV 20MP Outdoor Multisensor Network Camera with Night Vision from Vivotek. Featuring an array of four 5MP sensors and four individually adjustable 3.8mm fixed lenses, this camera captures a seamless 180 x 65° panoramic view with a total combined resolution of up to 7680 x 2560 at 30 fps. The camera is equipped with IR LEDs for up to 98' of night vision and uses a mechanical IR cut filter to switch from color to B&W for day/night functionality.

Designed for use in vandal-prone outdoor locations, the camera is housed in an IP66- and IK10-rated enclosure. A built-in microSD card slot allows for onboard storage of footage, while audio in/out ports enable two-way talk. PoE technology simplifies installation by enabling you to run just one cable for both data and power. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.

Specifications

•  Sensor: 4 x 5 MP 1/2.7" CMOS
• Focal Length: 3.8mm
•  Maximum Aperture: f/1.8
• Zoom Digital: 48x
• Lens Field of View :
Horizontal: 180°
Vertical: 65°
Diagonal: 180°
•  IR Cut Filter: Mechanical
•  Minimum Illumination
Color: 0.095 Lux
B&W: 0 Lux
•  Shutter Speed 1/32,000 to 1/5 Seconds
• Camera Angle Adjustment:
Horizontal: -90 to 90°
Vertical: 0 to 90°
• WStreaming Resolution: 7680 x 2560 at 30 fps
• Supported Video Compression: H.264, H.265, MJPEG
• Multi-View Streaming: Yes, 4 Streams
•  Audio Streaming: Two-Way
• Audio Formats: G.711, G.726
• Built-In Mic: No
• External Audio Input: Terminal Block (Unspecified Pin Count)
• Built-In Speaker: No
•  Networking Security: HTTPS, IEEE 802.1X
• Supported Protocols: ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, IGMP, IPv4/v6, NTP, ONVIF Profile S, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UPnP
• Application Programming Interface (API): VADP
• Analytics: Five-Window Video Motion Detection
• Event Trigger: Yes
• Event Action: Recording, Notification, Alarm
• Data Streaming : Yes
• Windows OS Support: Windows 7, 8
• Mac OS Support: macOS 10.12
• Operating Humidity: 90%
• IP Rating: IP66
• IK Rating : IK10
• Memory: 4 GB RAM / 8000 MB Flash
• Recording Media: microSD (up to 256 GB)
• I/O Connections: 1 x RJ45, 1 x Power
•  Dimensions: H: 5.1 x W: 6.6 x L: 12.1" / H: 130.0 x W: 167.0 x L: 308.0 mm
• IR Range: 98.43' / 30 m
•  Power Source AC, PoE 802.3at (30 W)
• Weight: 5.28 lb / 2400 g
