Innodisk DESDM-16GE21SEASKInnodisk MicroSD 3ME2 series, supporting class 10 with UHS-I , are specifically designed for industrial PC and embedded applications. The 3.0 series SD card has latest firmware architecture and Flash algorithms, including superior wear leveling, and read disturb management ensuring highest reliability and endurance.
Innodisk industrial MicroSD 3ME2 series provide wide range capacities from 8GB to 64GB with excellent quality MLC NAND Flash, and fully compliant to SD3.0, and SD2.0 specifications.
With its low power consumption and features above, Innodisk MicroSD 3ME2 series can be applied on industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile application.

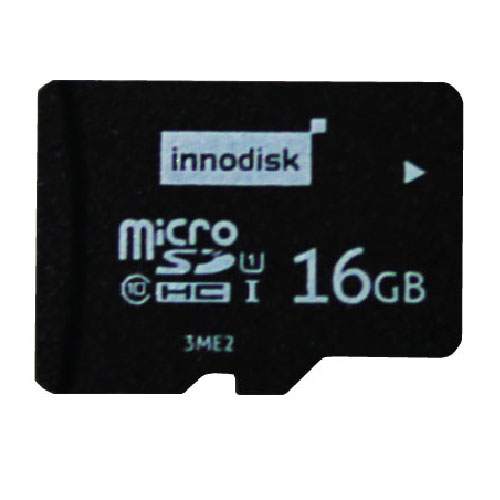

Model DESDM-16GE21SEASK
MicroSD Card 3ME2
Product Features
SD 3.0 interface
Support Class 10 with UHS-I
Adopt MLC NAND flash
High performance
Targeted for portable and stationary applications
SMART function supported
|
Model Name
|
DESDM-16GE21SEASK
|
|
| Interface |
SD 3.0
|
|
Flash Type
|
MLC
|
|
Capacity
|
16GB
|
|
| Sequential R/W (MB/sec, max.) |
76/32
|
|
Max. Power Consumption
|
0.7W (3.3V x 219mA)
|
|
| Max. Channels |
1
|
|
| S.M.A.R.T |
Y
|
|
ATA Security
|
N
|
|
| Dimension (WxLxH/mm) |
11.0 x 15.0 x 1.0
|
|
| Vibration |
20G@7~2000Hz
|
|
| Shock |
1500G@0.5ms
|
|
| MTBF |
>3 million hours
|
|
| Storage Temperature |
-25°C ~ +85°C
|
