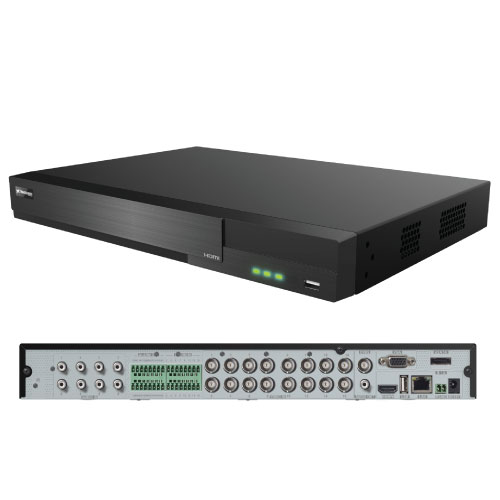

16 CH 8MP 4K 5-IN-1 DVR 2xSATA VITEK
16 CH 8MP 4K 5-IN-1 DVR 2xSATA VITEK
Item #
DVT816V
Brand
Vitek
Model
VT-TR8HA1620

Color
Black
Warranty
3 Year /1 Year OTC /2 Year MFG
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

The Ultra Versatile and User friendly Transcendent High Definition 5-in-1 Analog (Coax Based) Digital Recorders support Recording and Playback of TVI/AHD format cameras up to 5MP (Lite Mode) and CVI up to 4MP (Lite Mode) and offer H.265 Compression.

Although they are DVRs in nature, they also offer maximum IP channel support in full Hybrid Mode. These recorders share the same client, CMS and mobile applications as the Transcendent NVRs.

Camera options include fixed, and Varifocal Motorized Auto Focus with COC and vandal/weather resistant models. Control Drivers are available for various Automation Systems

Specifications

• Video Input 16 Channels HD-TVI / AHD / CVI / Analog BNC Inputs Supporting up to 8 MegaPixel
• 8 HD Analog channels may be substituted for IP Cameras (plus 8 additional IP Cameras up to 8MP) for a complete Hybrid solution (up to 24 cameras)
• IP Camera Support 8 MegaPixel @ 30fps Max
• Compression H.265 High Profile
• Analog Recording 8MP (4K): 7fps (Odd Channels Only) / 4K Lite: 15fps / 5MP: 12 fps / 5MP Lite: 20fps / 4MP: 15fps / 4MP Lite/1080P/720P/WD1: 30fps
• Network (IP) Recording 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P Real Time (30fps)
• Local Playback 16 CH
• OS Embedded Linux
• 1 x HDMI (4K – 3840×2160, 1920×1080, 1280×1024) / 1 x VGA (1080p) / 1 x BNC Spot (Analog)
• Pentaplex: Live Display / Record / Playback / Backup / Remote Access
• Audio Input: RCA x 8 / Output: RCA x 1
• Two-Way Audio YES
• Bit Rate 32Kbps ~ 5Mbps
• Encode VBR / CBR
• Quality Levels 6 level
• Recording Modes Manual / Timer / Motion / Sensor
• Search Time Sliced, Time, Event, Tag Management
• Function Play, Pause, FF ,FB, Digital zoom
•  Alarm In/Out 16 Alarm inputs / 4 Alarm Output
• Alarm Modes Sensor, Motion, Video loss
• Alarm Triggering Record, PTZ move, Relay out, E-mail, etc
• Network Interface RJ45: 10/100/1000Mbps × 1
• Remote Viewing CMS / Web Browser / Mobile Platforms
• Remote Playback 16CH
• Dual-stream Individual Network Video Stream and local recording stream, set separately
•  RS485 x1 (for PTZ)
• PTZ Protocol Control over Coax, Pelco D / Pelco P
Network Protocols TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
• SATA HDD Up to 20TB (2 x 10TB)
• USB 2 x USB 2.0 for mouse and USB backup devices
• Accessories Remote controller, SATA cable, USB mouse
• 15” x 1.75” x 11” (381mm × 44.45mm × 254mm)
