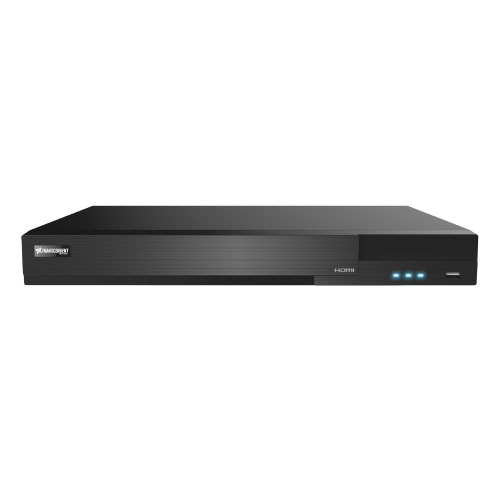

VT-TR2NHA1620Transcendent Series 16 Channel 5-In-1 HD-TVI / AHD / CVI / 960H / IP Digital Video Recorder
• NDAA Compliant
• 16 Channel HD-TVI / AHD / CVI / CVBS BNC Inputs + IP Camera Support
• 8-Channel IP Camera Support
• 160fps @ 5MP Lite / 240fps @ 1080p / 480fps @ 1080P Lite & 720p
• Simple plug and play, point-to-point connection from camera to DVR
• H.265 Compression
• HDMI, VGA, and BNC (Spot) Video Outputs
• 2-Way Audio
• PTZ Control over Coax, RS-485
• 16 Alarm inputs / 4 Alarm Output
• Pentaplex: Live Display / Record / Playback / Backup /Remote Access
• 2 Internal SATA2/SATA3 HDD Slot supporting up to 20TB (2 x 10TB HDD) + 1 x E-SATA
• Applications for iOS & Android
• Remote Viewing over the Internet via Web Browser or LAN
• Mac OS® Client & CMS Central Management Software Included
• Supports both Dynamic and Static IP Addresses
• Control locally via USB Mouse or IR Remote Control
• Rack Ears Included
• 3 Year Warranty
|
Video Input
|
16 Channels HD-TVI / AHD / CVI / CVBS Analog BNC Inputs Supporting up to 5MP Lite
|
|
IP Camera Support
|
16IP Cameras (5MP @ 30fps Max)
|
|
Compression
|
H.265 / H.264
|
|
Recording (5MP Lite)
|
160fps: 10fps per channel
|
|
Recording (4MP Lite / 1080P)
|
240fps: 15fps per channel
|
|
Recording (1080P Lite) / (720P)
|
480fps: 30fps per channel
|
|
Local Playback
|
16CH
|
|
OS
|
Embedded Linux
|
|
Video Output
|
1 x HDMI (1080p) / 1 x VGA (1080p) / 1 x BNC Spot (Analog)
|
|
Multi Operation
|
Pentaplex: Live Display / Record / Playback / Backup / Remote Access
|
|
Audio
|
Input: RCA x 8 / Output: RCA x 1
|
|
Two-Way Audio
|
YES
|
|
Bit Rate
|
32kbps~5Mbps
|
|
Recording Modes
|
Manual / Timer / Motion / Sensor
|
|
Encode
|
VBR / CBR
|
|
Quality
|
6 Level
|
|
Multi-Screen Display
|
1 / 4 / 6 / 8 / 9 / 16 / 25
|
|
Search
|
Time Sliced, Time, Event, Tag Management
|
|
Function
|
Play, Pause, FF, FB, Shutter Control, Jog, Digital zoom
|
|
Alarm In/Out
|
16 Alarm inputs / 4 Alarm Output
|
|
Alarm Modes
|
Manual, Motion, Exception, Smart Event
|
|
Alarm Triggering
|
Record, PTZ Move, Relay Out, E-mail, etc
|
|
Network Interface
|
RJ45 x 1
|
|
Remote Viewing
|
CMS / Web Browser / Mobile Platforms
|
|
Remote Playback
|
8CH
|
|
Dual-stream
|
Individual Network Video Stream and local recording stream, set separately
|
|
Remote Users
|
10 users online, dual stream
|
|
RS485
|
RS485 x1 (for PTZ)
|
|
PTZ Protocol
|
Control over Coax, Pelco D / Pelco P
|
|
Network Protocols
|
TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS, SMTP, RTSP, HTTP
|
|
Network Bandwidth
|
Incoming: 32Mbps, Outgoing: 96Mbps
|
|
SATA HDD
|
Up to 20TB (2 x 10TB) + E-Sata x 1
|
|
USB
|
2 x USB 2.0 for mouse and USB backup devices
|
|
Accessories
|
Remote control, SATA cable, USB mouse
|
|
Power Supply DC:
|
12V / 4A
|
|
Dimensions (WxHxD)
|
14.96 × 10.55 × 1.77” / 380 × 268 × 45mm
|
