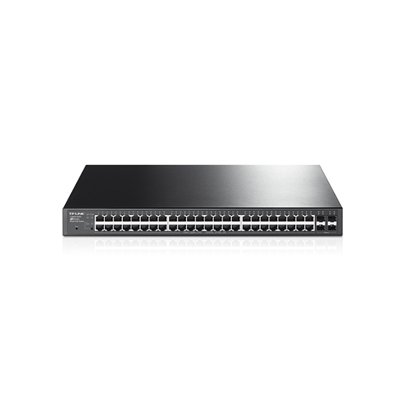

TP-Link Jetstream 48G+4SFP MNG PoE+384W

TP-Link Jetstream 48G+4SFP MNG PoE+384W

Item #
NS48JTP01
Brand
TP-Link
Model
T1600G-52PS

Color
Black
Warranty
5 Year /1 Year OTC /4 Year MFG
Condition
Retail Box
If out of stock
5 to 7 Days
Add On Products
Product Description

The Tp-Link Jetstream 48G ports T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports which support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W, powerful and ­flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch is also equipped with 4 Gigabit SFP slots, expanding your network fl­exibly. In addition, it provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, and useful security strategies.

the Tp-Link Jetstream 48G ports have Static Routing helps route internal traffic for more efficient use of network resources. The Storm Control feature protects against Broadcast, Multicast, and Unknown unicast Storm. 802.1X and Radius Authentication allows network client to be authenticated through external Radius Servers. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with SNMP, and RMON, mean faster setup and configuration with less downtime. With all these advanced features, the JetStream Gigabit Smart PoE+ Switch T1600G-52PS is an ideal choice for projects or business networks which need PoE function.

the Tp-Link Jetstream 48G ports  bring Abundant L2 and L2+ features T1600G-52PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-52PS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

Easy network monitor and management T1600G-52PS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network.

Features
Supports 48 802.3at/af-compliant PoE+ ports with a total power supply of 384W
L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resources
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X and Radius Authentication provide you robust security strategies
L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
IPv6 support with the IPv4/IPv6 dual stack, MLD snooping, IPv6 neighbor discovery
WEB/CLI managed modes, SNMP, and RMON bring abundant management features

Standards and Protocols IEEE 802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE802.3z
IEEE 802.3ad
IEEE 802.3x
IEEE 802.1d
IEEE 802.1s
IEEE 802.1w
IEEE 802.1Q
IEEE 802.1p
IEEE 802.1x
Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF

Fan Quantity 3
PoE+ Ports(RJ45) Standard: 802.3at/af compliant
PoE+ Ports: 48 Ports
Power Supply: 384W
Dimensions ( W x D x H ) 17.3 × 13 × 1.7 in.
(440 × 330 × 44 mm)
Mounting Rack Mountable 1 U
Max Power Consumption 47.6W ( with no power device connected)
485.7W (with 384W power device connected)
Max Heat Dissipation 162.3 BTU/h (with no power device connected)
1,657.2 BTU/h (with 384W power devices connected)
Bandwidth/Backplane 104Gbps
77.4Mpps 16K
MAC Address Table 16K
Jumbo Frame 9KB
Quality of Service Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS Voice VLAN
L2 and L2+ Features Static Routing
DHCP Relay
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Access Control List L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
Security AAA
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
DoS Defend
IPv6 Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
Management Web-based GUI and CLI management
SNMP v1/v2c/v3, compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image
Certification CE, FCC, RoHS
Package Contents T1600G-52PS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.>
Environment Operating Temperature: 0?~40? (32?~104?); Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

If you can't find what you're looking for here, please contact your sales representative.
