Standards and Protocols
|
IEEE 802.3, 802.3u, 802.3ab
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP
|
Interface
|
1 Fixed Gigabit WAN Port
1 Fixed Gigabit LAN Port
3 Changeable Gigabit WAN/LAN Ports
|
Network Medias
|
10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
100BASE-TX: UTP category 5, 5e cable (Max 100m)
EIA/TIA-568 100O STP (Max 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
|
Button
|
Reset Button
|
Power Supply
|
External 9V/0.6A DC Adapter
|
Flash
|
SPI 16MB
|
DRAM
|
DDR II 128MB
|
LED
|
PWR, SYS, WAN, LAN
|
Dimensions ( W x D x H )
|
6.2 × 4.0 × 1.0 in.
(158 × 101 × 25mm)
|
WAN Connection Type
|
Static/Dynamic IP,PPPoE/Russian PPPoE, PPTP/Russian PPTP, L2TP/Russian L2TP, Bigpond Cable
|
DHCP
|
DHCP Server/Client
DHCP Address Reservation
|
MAC Clone
|
Modify WAN MAC Address
|
ACL
|
IP/MAC/Domain Name Filtering
|
Advanced Routing
| Static Routing
Policy Routing
|
ARP Inspection
|
IP/MAC Binding
|
Bandwidth Control
| IP/Port-based Bandwidth Control
Guarantee & Limited Bandwidth
|
Forwarding
|
Virtual Server
Port Triggering
DMZ
UPnP
|
Security
|
SPI Firewall
VPN Passthrough
FTP/TFTP/H.323/RTSP ALG
DoS Defence, Ping of Death
Local Management
|
IPsec VPN
|
20 IPsec VPN Tunnels
LAN-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
MD5, SHA1 Authentication Algorithm
Manual, IKE Key Management Mode
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
|
PPTP VPN
|
16 PPTP VPN Tunnels
PPTP VPN Server
PPTP with MPPE Encryption
|
L2TP VPN
|
16 L2TP VPN Tunnels
|
Service
|
Dynamic DNS (DynDNS and No-IP)
|
Certification
|
CE, FCC, RoHS
|
Package Contents
|

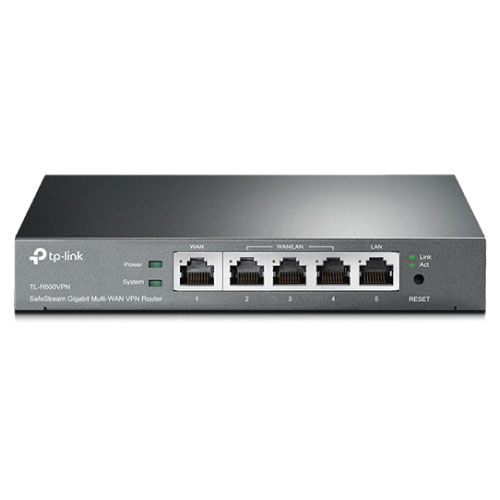

TL-R600VPN
Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
|
Environment
| Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
