Standards and Protocols
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
|
Interface
|
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
4 1000Mbps SFP Slots
1 Console Port
1 Micro-USB Console Port
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
1000BASE-X: MMF, SMF
|
Fan Quantity
|
2
|
Physical Security Lock
|
Yes
|
Power Supply
|
100~240VAC, 50/60Hz
|
PoE+ Ports(RJ45)
|
Standard: 802.3at/af compliant
PoE+ Ports: 24 Ports
Power Supply: 384W
|
Dimensions ( W x D x H )
|
17.3 × 13 × 1.7 in.
(440 × 330 × 44 mm)
|
Mounting
|
19" 1U Rack Mountable
(mounting bracket included)
|
Max Power Consumption
|
29W (without PoE load)
469W (with 384W PoE load)
|
Max Heat Dissipation
|
99 BTU/h (without PoE load)
1,599 BTU/h (with 384W PoE load)
|
Switching Capacity
|
56Gbps
|
Packet Forwarding Rate
|
41.7Mpps
|
MAC Address Table
|
16k
|
Jumbo Frame
|
9KB
|
Quality of Service
|
802.1p CoS/DSCP priority with 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN
|
L2 and L2+ Features
|
Static Routing
DHCP Relay
DHCP Server
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT
|
VLAN
|
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
802.1Q/MAC/Protocol-based/Private VLAN
GARP/GVRP
|
Access Control List
|
L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p,DSCP, protocol and VLAN ID
Time Range Based
|
Security |
IP-MAC-Port Binding
AAA
802.1x and Radius Authentication
DoS Defend
Dynamic ARP Inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control
|
Management |
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs
RMON (1, 2, 3, 9 groups)
sFlow
PPPoE Circuit ID
DHCP/BOOTP Client, D HCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Password Recovery
|
Certification |
CE, FCC, RoHS
|
Package Contents |

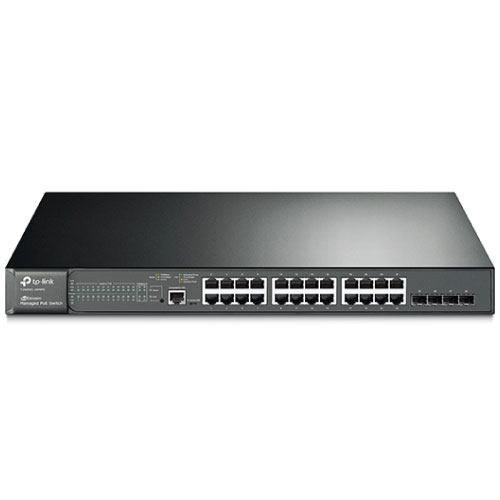

T2600G-28MPS Managed Switch
Power Cord
Quick Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
|
Environment |
Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
