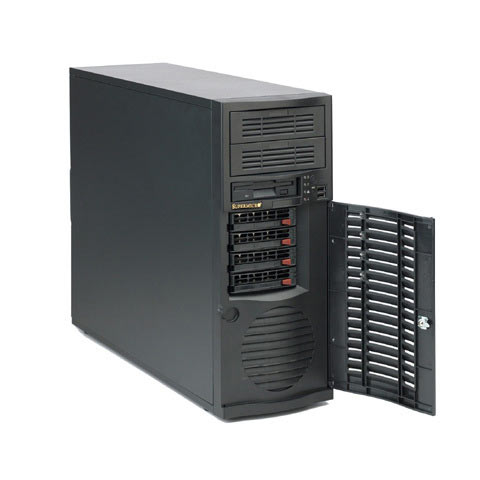

Supermicro Mid Tower 4X SATA-SAS 500WT

Product Description

Key Selling Points
•500 W high-efficiency power supply
•4 x 3.5" hot-swap SAS/SATA drive bays
•2 x 5.25" drive bays and 1 x 3.5" bay
•1x 92 mm front thermal fan
•7 x full-height, full-length expansion slots
•2 x USB front access I/O
•Power switch and 4 LED indicators
•Locking side panel and front door
•Support high-end graphics cards


Product Description Supermicro SC733 TQ-500B - mid tower - extended ATX
Product Type System cabinet
Form Factor Mid tower
Color Black
Built-in Devices LED panel
I/O Connectors 2 x USB 2.0
Installed Fans Qty 1
Supported Motherboards Extended ATX
Server Storage Bays SATA/SAS - hot-swap
System Cabinet Features Side panel lock, front panel door, SCSI Enclosure Services (SES2) support
Power Device Power supply 500 Watt
Voltage Required AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH) 7 in x 20.9 in x 16.8 in
Weight 39.02 lbs



Extended Specifications

General

Form Factor Mid tower
Max Mainboard Size Extended ATX
Supported Motherboards Extended ATX
Front Accessible Bays Qty 3
Hot-Swap Bays Qty 4
Server Swappable Drive Interface SATA/SAS
Built-in Devices LED panel
Color Black
Fans Front : 1 x 9.2 cm - ( 1 installed)
System Cabinet Features Side panel lock, front panel door, SCSI Enclosure Services (SES2) support

Expansion / Connectivity

Expansion Bays 4 (total) / 4 (free) x hot-swap - 3.5" ? 1 (total) / 1 (free) x front accessible - 3.5" ? 2 (total) / 2 (free) x front accessible - 5.25"
Expansion Slots 7 x full-length, full-height
Interfaces 2 x USB 2.0

Miscellaneous

Included Accessories SAS / SATA backplane
Compliant Standards UL, TUV, cUL, EN 60950, IEC 60950, CCC, EMC, FCC

Power

Power Device Power supply
Installed Qty 1
Max Supported Qty 1
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 500 Watt
Power Supply Features Power Factor Correction (PFC)

Dimensions & Weight

Width 7 in
Depth 20.9 in
Height 16.8 in
Weight 39.02 lbs

Environmental Parameters

Min Operating Temperature 50 ?F
Max Operating Temperature 95 ?F
Humidity Range Operating 8 - 90%
