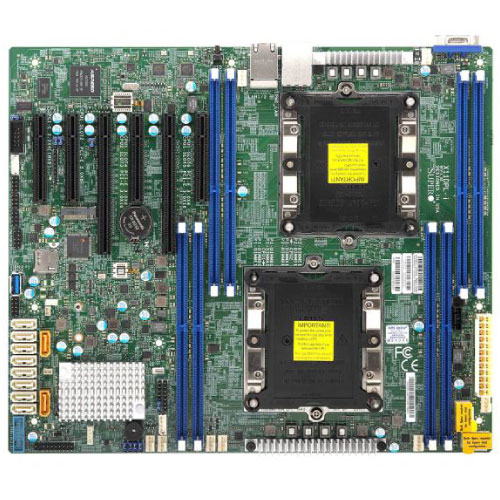

S.M Xeon Dual 3647 Square Fan 8xDDR4

Item #

MBIXS3647SMD

Brand

Supermicro

Model

MBD-X11DPL-I-O

Warranty

1 Year

Condition

Retail Box

If out of stock

5 to 7 Days

Product Description

S.M XEON DUAL 3647
1. Intel® Xeon® Processor Scalable Family., Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s 2. Intel® C621 3. Up to 512GB Registered ECC RDIMM and DDR4-2666MHz, Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots 4. 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: PCIe 3.0 x4 M.2 Form Factor: 2260, 2280 5. 1 VGA port(s) 6. Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 7. Dual LAN with Lewisburg Marvell 88E1512 PHY Detail Specifications Form Factor ATX CPU Intel Xeon Processor Scalable Family. Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s Memory Capacity Up to 512GB Registered ECC RDIMM and DDR4-2666MHz, Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots Memory Type 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM DIMM Sizes RDIMM: 64GB LRDIMM: 128GB 3DS LRDIMM: 128GB Memory Voltage 1.2V Error Detection Corrects single-bit errors Chipset Intel C621 SATA Intel C621 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10 IPMI ASPEED AST2500 Network Controllers Dual LAN with Lewisburg Marvell 88E1512 PHY Graphics Aspeed AST2500 BMC USB 4 USB 2.0 ports (2 rear + 2 via header(s)), 3 USB 3.0 ports (2 via header(s) + 1 Type A) Video Output 1 VGA port(s) Serial Port / Header 1 COM Port (1 header(s))	TPM 1 TPM Header PCI-E 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: PCIe 3.0 x4 Form Factor: 2260, 2280 BIOS Type AMI UEFI Software Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog Power Configurations ACPI Power Management Voltage +12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility FAN 8x 4-pin fan headers (up to 8 fans), Overheat LED indication, PWM fan speed control Temperature CPU thermal trip support PECI LED CPU / System Overheat LED UID/Remote UID Other Features ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, SDDC, UID, WOL Item Dimension (L inchxW inchxH inch) 14 x 11 x 3 Weight 3.00lb Warranty Information 1-Year

S.M XEON DUAL 3647

1. Intel® Xeon® Processor Scalable Family., Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
2. Intel® C621
3. Up to 512GB Registered ECC RDIMM and DDR4-2666MHz, Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
4. 2 PCI-E 3.0 x16,
3 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: PCIe 3.0 x4
M.2 Form Factor: 2260, 2280
5. 1 VGA port(s)
6. Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. Dual LAN with Lewisburg Marvell 88E1512 PHY

Detail Specifications

Form Factor
ATX

CPU
Intel Xeon Processor Scalable Family.
Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s

Memory Capacity
Up to 512GB Registered ECC RDIMM and DDR4-2666MHz, Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots

Memory Type
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM

DIMM Sizes
RDIMM: 64GB
LRDIMM: 128GB
3DS LRDIMM: 128GB

Memory Voltage
1.2V

Error Detection
Corrects single-bit errors

Chipset
Intel C621

SATA
Intel C621 controller for 10 SATA3 (6 Gbps) ports RAID 0,1,5,10

IPMI
ASPEED AST2500

Network Controllers
Dual LAN with Lewisburg
Marvell 88E1512 PHY

Graphics
Aspeed AST2500 BMC

USB
4 USB 2.0 ports (2 rear + 2 via header(s)),
3 USB 3.0 ports (2 via header(s) + 1 Type A)

Video Output
1 VGA port(s)

Serial Port / Header
1 COM Port (1 header(s))

TPM
1 TPM Header

PCI-E
2 PCI-E 3.0 x16,
3 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8 slot)

M.2
Interface: PCIe 3.0 x4
Form Factor: 2260, 2280

BIOS Type
AMI UEFI

Software
Intel Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor 5, Watchdog

Power Configurations
ACPI Power Management

Voltage
+12V, +3.3V, +5V, +5V standby, 3.3V standby, 8 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility

FAN
8x 4-pin fan headers (up to 8 fans), Overheat LED indication, PWM fan speed control

Temperature
CPU thermal trip support
PECI

LED
CPU / System Overheat LED
UID/Remote UID

Other Features
ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss,
CPU thermal trip support for processor protection, Node Manager Support, SDDC, UID, WOL

Item Dimension (L inchxW inchxH inch)
14 x 11 x 3

Weight
3.00lb

Warranty Information
1-Year
