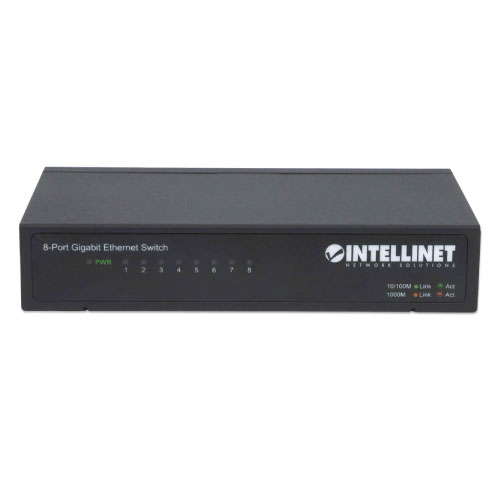

Intellinet 8 Port 10-1000 Switch Metal

Intellinet 8 Port 10-1000 Switch Metal

Item #
NS08GIN01
Brand
Intellinet
Model
530347

Color
Black
Warranty
3 Year
Condition
Retail Box
If out of stock
3 to 5 Days
Product Description

Easy to install, with auto-learning capabilities.

The Intellinet Network Solutions Gigabit Ethernet Switch is perfect for the home or small office, delivering top speeds to the desktop to satisfy your demanding network needs.

High-Speed Performance
This desktop switch includes eight Gigabit Ethernet ports, providing you with high performance on your network to handle quick transfer speeds that support disk mirroring, data backup, graphics image file transfers and other bandwidth-intensive applications.


Features:
10/100/1000 Auto MDI-X ports automatically detect optimal network speeds
High performance, half and full duplex, with zero packet loss
Full flow control support provides optimum performance
Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
Auto-learning of network configuration
Supports jumbo frames up to 9 kBytes
Store and forward switching architecture
Non-blocking wire-speed forwarding and filtering
Fanless design ideal for silent operation
Rugged metal housing for maximum durability
Three-Year Warranty

Standards IEEE 802.3 (10Base-T Ethernet)
IEEE 802.3u (100Base-TX Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3az (Energy Efficient Ethernet EEE)
IEEE 802.3x (Flow Control and Backpressure)

General ANSI/IEEE 802.3 NWay auto-negotiation
Non-blocking, store and forward switching architecture
Backpressure flow control for half duplex mode on 10/100 Mbps ports
Connectors: eight 10/100/1000 Mbps RJ45 ports

Network cables: 10Base-T: Cat3, 4, 5 UTP/STP - 100Base-TX: Cat5 UTP/STP - 1000Base-T: Cat5e UTP/STP
Certifications: FCC Class B, CE, RoHS
Switch architecture: store and forward
Backplane speed: 16 Gbps
LEDs Power
LINK/ACT for each 10/100/1000 Mbps port
Power DC input: 5 V, 1 A
Power consumption: 2.75 watts (maximum)
Environmental Metal housing, desktop size
Dimensions: 140 (W) x 78 (L) x 28 (H) [mm] / 5.51 (W) x 3.07 (L) x 1.1 (H) [in]
Weight: 0.34 kg (0.75 lbs.)
Operating temperature: 0 – 40°C (32 – 104°F)
Operating humidity: 10 – 90% RH, non-condensing
Package Contents 8-Port Gigabit Ethernet Switch
External power adapter
User manual
